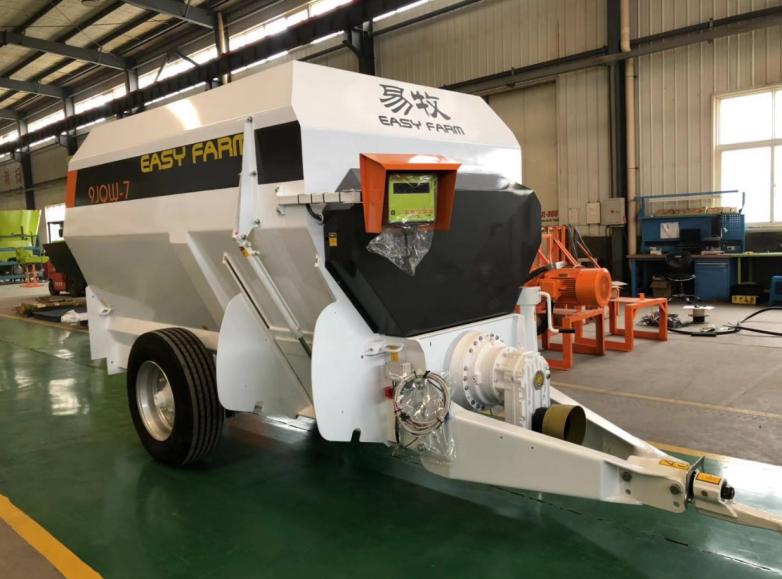

Easy Farm 9JQW-5/7/9/12/16 Horizontal traction feed preparation machine
Content

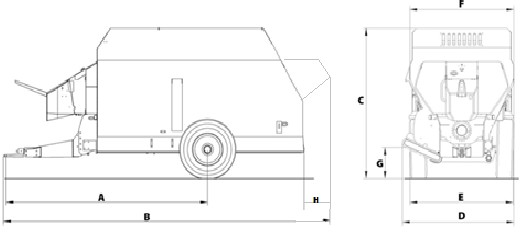

| Capacity | A | B | C | D | E | F | G | H | Weight | Total mass | Tractor power output |
| m3 | mm | mm | mm | mm | mm | mm | mm | mm | kg | kg | HP |
| 5 | 3250 | 4915 | 2100 | 1780 | 1710 | 1665 | 415 | 470 | 2550 | 4700 | 55～60 |
| 7 | 3315 | 5385 | 2285 | 1825 | 1760 | 1750 | 410 | 470 | 3050 | 6700 | 60～65 |
| 9 | 3660 | 5770 | 2545 | 2080 | 1990 | 1865 | 535 | 500 | 3950 | 8350 | 70～75 |
| 12 | 3910 | 6405 | 2715 | 2155 | 1990 | 2012 | 565 | 500 | 4600 | 9900 | 80～85 |
| 16 | 4200 | 7155 | 2815 | 2220 | 2200 | 2140 | 555 | 500 | 5700 | 11900 | 90～95 |
| Easy Farm 9JQW | 5 | 7 | 9 | 12 | 16 |
| Cubic Volume m3 | 5 | 7 | 9 | 12 | 16 |
| Standard Configuration | |||||
| 1 Weighing System | STD | STD | STD | STD | STD |
| 2 Three-Auger Circulating Mixing System | STD | STD | STD | STD | STD |
| 3 Right Front Discharging System | STD | STD | STD | STD | STD |
| 4 Fixed Discharging Scraper AssemblyDischarging Door Width=800mm | STD | STD | NA | NA | NA |
| 5 Fixed Discharging Scraper AssemblyDischarging Door Width=950mm | NA | NA | STD | STD | STD |
| 6 Hand Crank Lifting Outriggers | STD | STD | STD | STD | STD |
| 7 Adjustable Fixed Height Traction Bracket | STD | STD | STD | STD | STD |
| 8 Reinforced Traction Pivot | STD | STD | STD | STD | STD |
| 9 Traction Axle | STD | STD | STD | STD | STD |
| 10 Two-Stage Planetary Gearbox Mechanical Transmission System | STD | STD | STD | STD | STD |
| 11 Standard Transmission Shaft | STD | STD | STD | STD | STD |
| 12 All-Steel Radial Tires - Brand New235/75 R17.5 (One Pair) | STD | NA | NA | NA | NA |
| 13 All-Steel Radial Tires - Brand New285/70 R19.5 (One Pair) | NA | STD | NA | NA | NA |
| 14 All-Steel Radial Tires - Brand New315/70 R22.5 (One Pair) | NA | NA | STD | NA | NA |
| 15 All-Steel Radial Tires - Brand New315/80 R22.5 (One Pair) | NA | NA | NA | STD | NA |
| 16 All-Steel Radial Tires - Brand New445/65 R22.5 (One Pair) | NA | NA | NA | NA | STD |
| 17 Automatic Lubrication | NA | NA | NA | NA | NA |
| 18 Stainless Steel Base Plate | NA | NA | NA | NA | NA |
| 19 Discharging Door Magnet | NA | NA | NA | NA | NA |
