Packing Machine

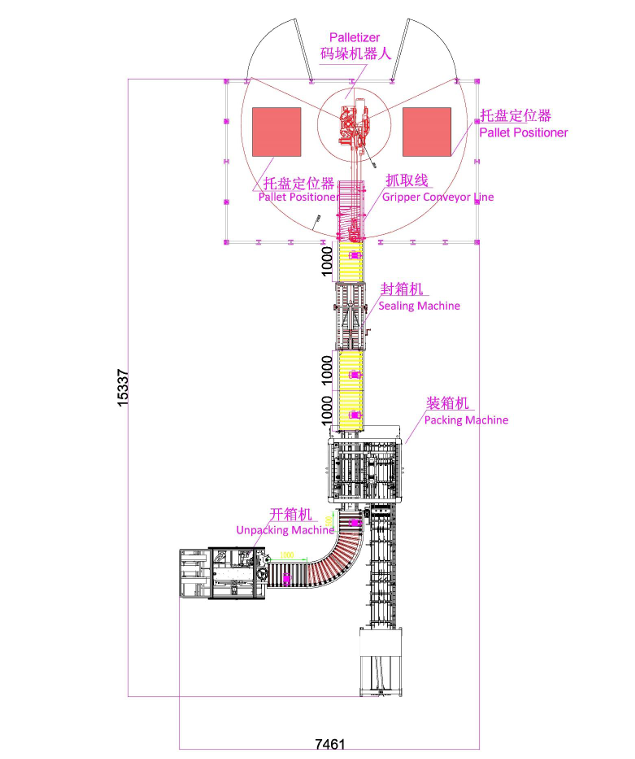

Packing Machine + Palletizer 850 BOX/H

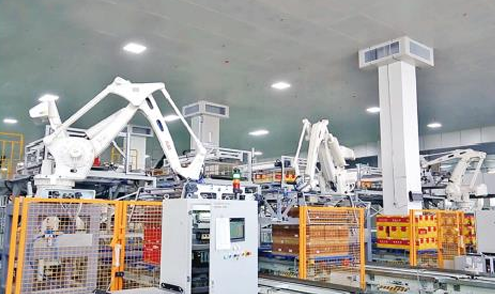

Automatic packaging production line

Independently developed robot automation system:

✓ It can be independently programmed according to the specific production conditions of users to achieve intelligent production, completely re-placing manual operation

✓ Improve production efficiency

  ✓ Ensure a stable workforce

✓ Improve product quality

✓ Reduce costs

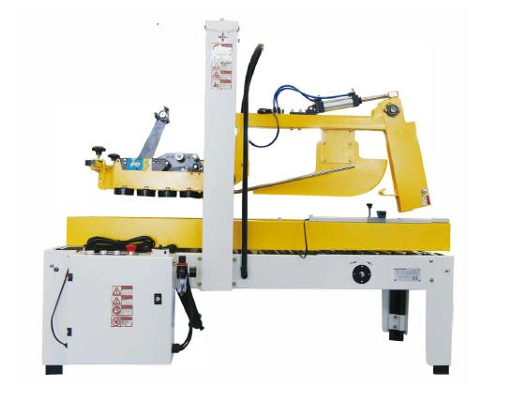

 Case sealing machine

Sealing machine is a commonly used packaging machinery, the use of BOPP that is sticky tape (also known as the seal of the box tape) on the carton sealing, can he on both sides at the same Lime sealing, packaging speed, high efficiency, beautiful and generous.

Unpacking machine, packing machine, case sealing machine composed of the whole line of action for automatically, using PLC+ touch screen control, a lack of material advance warning, no material automatic stopping safety device, the pipeline has the advantages of convenient operation, management, and reduce the production and labor intensity, is essential for automated mass production equipment.

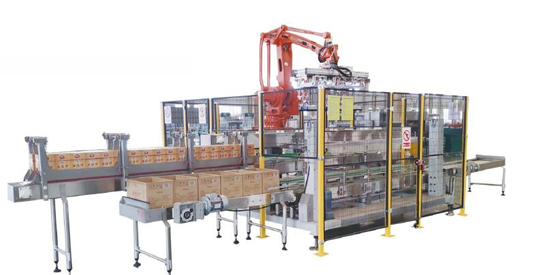

ZXHR rohot packing machine

The bottle or hox (together with the handbag) is automatically loaded into the hox hy the robot, which can reduce the labor cost and improve the production efficiency. The box (bottle) an<l hox conveying directions are parallel, the structure is compact and reasonable, and the pe1formance is stable and reliable.

Main features:

✓ The robot is used to grab the box, which has the characteristics of stability, high precision and high speed.

✓ At the same time of packing, the handbag is loaded synchronously, which has the advantages of high automation and high efficiency ✓ Vacuum suction cup is adopting d for h part of grasping box, which has large suction force, firm grasping box and is not easy to shake ✓ Circular arc tooth synchronous belt is selected for the chain of hand hag conveying, which has high transmis-sion efficiency, accurate position and long service life.

✓ The synchronous mechanical transmission guide frame assembly structure eliminates the problem that the cylinders at both ends of the tradi-tional guide frame cannot move up and down synchronously, and can move freely and pack quickly

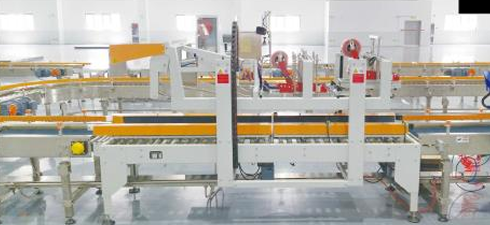

Unpacking machine

The action is taken out of the machine box, molding and folding cover and the back cover as a whole. First flat cardboard boxes in a material storage tank, through the sucker suck box from the trough, in draw out also will carton forming, then folding and after about cover, the final completion of the tape sealing
