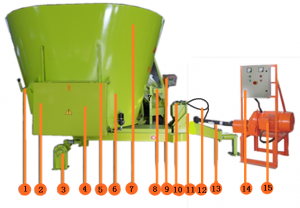

GOKE 9JGL-8/10/12/14 Vertical fixed feed preparation machine

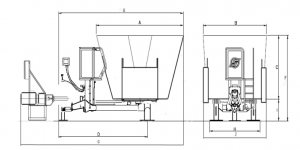

volume A B C D E F G H I J self-respect Maximum load Power of deceleration motor
m3 mm mm mm mm mm mm Mm mm mm mm kg Kg kw
8 3175 2415 1700 3340 4745 2480 6390 1675 810 2650 3465 6000 22
10 3300 2450 1930 3340 4805 2680 6550 1675 810 2650 3620 6500 30
12 3475 2490 2215 3340 4895 2980 6590 1675 810 2650 4680 8000 30
14 3475 2490 2415 3340 4850 3225 6590 1675 810 2700 3740 8500 30



GOKE 9JGL 8 10 12 14 Remarks
Cubic Volume m3 8 10 12 14
Standard Configuration
1 Electronic Weighing System STD STD STD STD
2 Single Auger Circulating Mixing System STD STD STD STD
3 Double-sided Discharging System STD STD STD STD
4 Mechanical Remote Tendon Control (2-channel) STD STD STD STD
5 Fixed Axle Bracket STD STD STD STD
6 Planetary Gearbox Mechanical Transmission System STD STD STD STD
8 Independent Hydraulic System STD STD STD STD
9 2 Manual Fixed Knife Blocks STD STD STD STD
10 Observation Platform STD STD STD STD
11 Discharging Scraper STD STD STD STD
12 Geared Motor and Bracket STD STD STD STD
13 Power Distribution Cabinet and Bracket STD STD STD STD
14 Standard Transmission Shaft STD STD STD STD
15 Six-spline and Coupling STD STD STD STD
