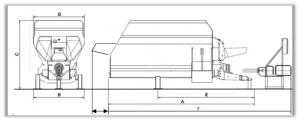

Easy Farm 9JGW-5/7/9/12/16 Horizontal fixed feed preparation machine

Capacity A B C D E F G Weight Max Load     Reduction Motor Power
m3 mm mm mm mm mm mm mm kg kg kw
5 4565 1420 2097 1665 3000 5840 470 2520 4700 22
7 5135 1420 2286 1750 3065 6305 470 3020 6700 22
9 5520 1545 2542 1865 3410 6710 500 3960 8350 30
12 6155 1545 2715 2015 3660 7345 500 4620 9900 30
16 6850 1545 2815 2140 3900 8150 500 5700 11900 37


Item 5 7 9 12 16
Cubic Capacity (m³) 5 7 9 12 16
Standard Configuration
1 Electronic Weighing System STD STD STD STD STD
2 Three-auger Circulating Mixing System STD STD STD STD STD
3 Front Discharge System (Right Side) STD STD STD STD STD
4 Fixed Axle Bracket STD STD STD STD STD
5 Two-stage Planetary Gearbox Mechanical Drive System STD STD STD STD STD
6 Gear Motor & Bracket STD STD STD STD STD
7 Electrical Control Cabinet & Bracket STD STD STD STD STD
8 Standard Drive Shaft STD STD STD STD STD
9 Six-spline Shaft & Coupling STD STD STD STD STD
10 Independent Hydraulic Power Unit STD STD STD STD STD
11 Automatic Lubrication NA NA NA NA NA
12 Stainless Steel Bottom Plate NA NA NA NA NA
13 Discharge Door Magnet NA NA NA NA NA
